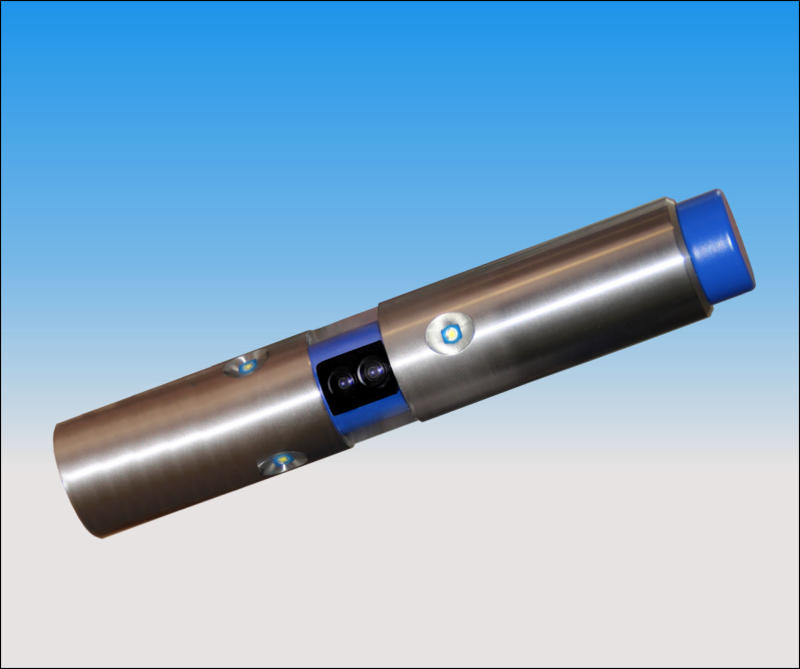

Borhole / Well Inspection Camera: SBK-42 DuoCam Fokus
A full HD camera with remote focusing of the horizontal
camera, which can be used from 2 inches (50 mm).
Vertical camera:
•
Color CCD camera
•
Light sensitivity 0.01 lux
•
Lens with 110° viewing angle
•
Continuously adjustable LED high-performance lighting with an illumination of
up to 40" (1,000 mm)
Horizontal cameras:
•
Long-distance focusing already in the 2 inch (50 mm) tube
•
Color CCD cameras, high resolution with 700 lines
•
Light sensitivity 0.01 lux
•
1. Camera with lens 110° viewing angle
•
2. Camera with lens 70° viewing angle (zoom function)
•
Endlessly rotatable with infinitely variable speed control
•
Continuously adjustable LED high-performance lighting with an illumination of
up to 40" (1,000 mm)
Before delivery, this camera with plug is subjected to a pressure test (50 bar / 12
hours).
Full HD 1920 x 1080 pixels
Diameter 42mm
Length 260mm
Weight 880g
Waterproof to a depth of 500 m
V2A housing
