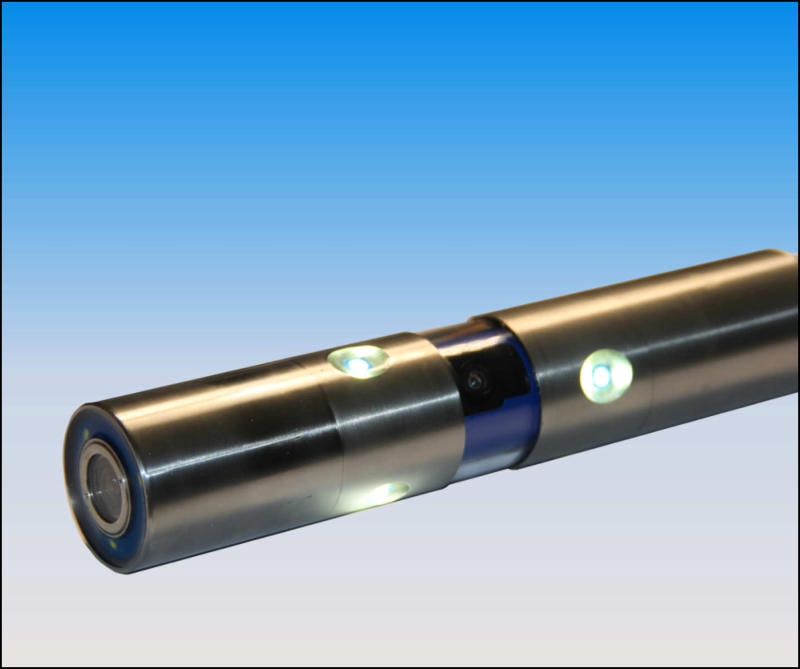

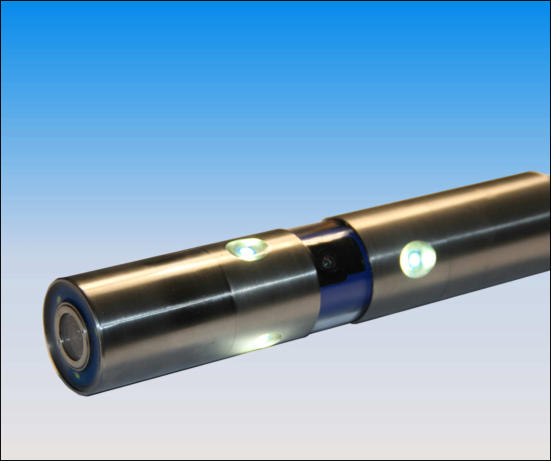

Borehole / Well Inspection Camera: SBK-TripleCam
A camera with an optical zoom function with a horizontal
view that can be used from 2 inches (50 mm).
Vertical camera:
•
Color CCD camera, high resolution 720 x 576 pixels
•
Light sensitivity 0.01 lux
•
Lens with 110° viewing angle
•
Infinitely adjustable LED high-performance lighting with an illumination of up
to 40" (1,000 mm)
Horizontal cameras:
•
Color CCD cameras, high resolution 720 x 576 pixels
•
Light sensitivity 0.01 lux
•
1. Camera with lens 110° viewing angle
•
2. Camera with lens 70° viewing angle (zoom function)
•
Endlessly rotatable with infinitely variable speed control
•
Infinitely adjustable LED high-performance lighting with an illumination of up
to 40" (1,000 mm)
Before delivery, this camera with plug is subjected to a
pressure test (50 bar / 12 hours).
Diameter
42mm
Length
260mm
Weight
880g
Waterproof to a depth of 500 m
V2A housing
